How Pump Insulation Jackets Help Reduce Heat Loss and Improve Maintenance
Industrial pumps often work with hot fluids. The pump body, casing, and nearby parts can become hot during operation. If these surfaces are left exposed, they can release heat into the surrounding area.
This heat loss can increase energy use. High surface temperatures can also make inspection and maintenance more difficult.

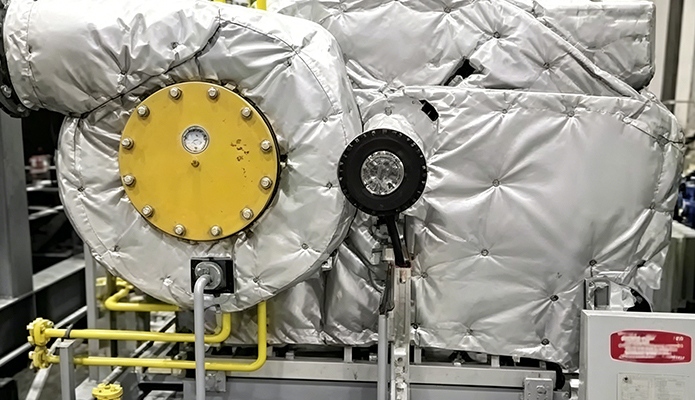

A Pump Insulation Jacket can cover the hot parts of a pump while allowing access when maintenance is needed. This makes pump insulation useful in many industrial plants.
Why Pumps Need Thermal Insulation
Pumps used for hot oil, steam, water, chemicals, and other process fluids can operate at high temperatures.
Heat can move from the fluid to the pump casing. The casing then transfers heat to the surrounding air.
Some heat loss is expected during operation. But exposed pump surfaces can create unnecessary heat loss, especially when the pump operates for long periods.
Pump insulation helps reduce direct heat transfer from the pump surface to the surrounding area.
Insulation can also help reduce the surface temperature of the covered area. This is useful where workers need to inspect or work near hot equipment.
How a Pump Insulation Jacket Helps Reduce Heat Loss
A Pump Insulation Jacket adds an insulation layer around the pump.
The jacket can be made in sections to fit the pump shape. The insulation material is placed inside a protective outer cover.
The main purpose is simple. It slows heat transfer from the hot pump surface.
The actual insulation effect depends on several factors. These include operating temperature, insulation thickness, material type, pump shape, and installation quality.
A small gap or uncovered area can reduce the overall benefit. This is why the jacket should fit the pump closely.
The design should also leave enough space around parts that need regular inspection.

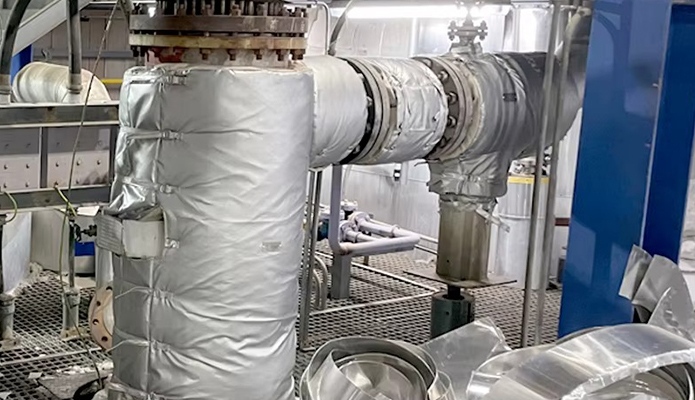

Equipment Insulation Cover for Pumps and Industrial Equipment
An Equipment Insulation Cover can be used on more than pumps.
Industrial plants may also need insulation for valves, flanges, heat exchangers, pipe fittings, and other hot equipment.
For pumps, the cover normally follows the shape of the pump casing. Openings may be added around the motor connection, shaft, bolts, or other parts.
The design should match the actual equipment.
A simple cover may work well on a regular pump shape. A more complex pump may need several sections and different fastening points.
The outer cover also needs to suit the working area. Indoor and outdoor equipment may have different requirements.
How Pump Insulation Supports Safer Maintenance
Maintenance is one reason to use removable insulation.
A pump may need regular inspection. Workers may need to check bolts, seals, flanges, or other parts.
Fixed insulation can make this work harder. The insulation may need to be cut or removed before the pump can be checked.
A removable Pump Insulation Jacket can be opened and installed again after maintenance.
This can reduce the amount of insulation material that needs to be removed each time.
It can also help keep the pump covered after the work is finished.
For equipment that needs frequent inspection, easy removal can be as important as insulation performance.
When Custom Pump Insulation Is Needed
Not every pump has the same shape.
Pump size, casing design, connection position, pipe layout, and nearby equipment can all be different.
A standard insulation cover may leave gaps around complex areas.
Custom pump insulation can be made according to the actual equipment dimensions. The design can include openings for bolts, pipes, flanges, and other parts.
Custom work is also useful when the available installation space is limited.
Before production, buyers should provide basic information such as pump dimensions, operating temperature, insulation thickness, and photos or drawings.
Good measurements help reduce fitting problems during installation.
Common Problems with Poor Pump Insulation
Poor insulation does not always mean that the insulation material is wrong.
The problem may come from the design or installation.
Common issues include:
Gaps between the insulation and pump
Exposed hot surfaces
Incorrect insulation thickness
Poor fitting around connections
Difficult removal during maintenance
Damaged outer covers
Water entering outdoor insulation
A cover that is too loose may leave heat loss areas. A cover that is too tight may make maintenance difficult.
The insulation should provide a practical balance between thermal protection and equipment access.
Pump insulation also needs regular inspection. Damaged covers, loose fasteners, and wet insulation should be checked during routine maintenance.
A Pump Insulation Jacket is most useful when it is designed around the actual pump and working conditions.
The goal is not simply to cover the pump. The insulation should reduce heat loss, keep hot surfaces better protected, and still allow normal inspection and maintenance.
For industrial equipment, the best results usually come from a design that considers temperature, pump shape, insulation thickness, maintenance frequency, and installation conditions together.
