Bricking Machines
LAR operates as a bricking machine manufacturer that provides engineered solutions for industrial kiln construction and repair projects. A bricking machine manufacturer focuses on improving lining accuracy, installation speed, and operational safety. A bricking machine manufacturer also supports customized configurations based on kiln diameter and working conditions.
LAR supplies industrial bricking machine systems for rotary kiln maintenance and refractory construction projects. An industrial bricking machine uses pneumatic and hydraulic power to control brick positioning inside the kiln shell. An industrial bricking machine also ensures uniform brick pressing force for stable lining quality.
LAR offers bricking machines for sale to cement plants, metallurgy facilities, and refractory service contractors. Bricking machines for sale are available in different models based on kiln size and installation requirements. Bricking machines for sale also support customization for different refractory brick types and working environments.
Structure

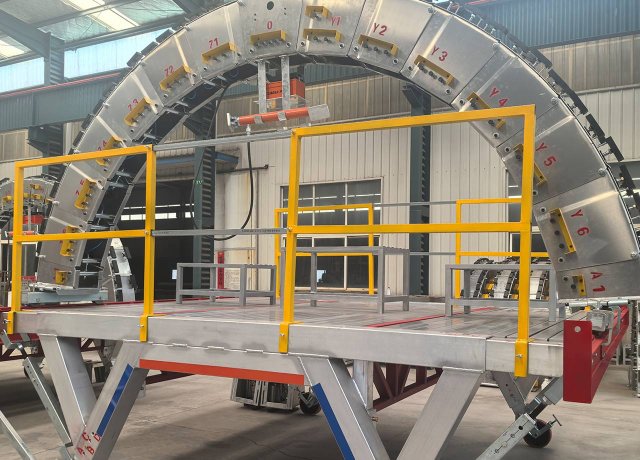

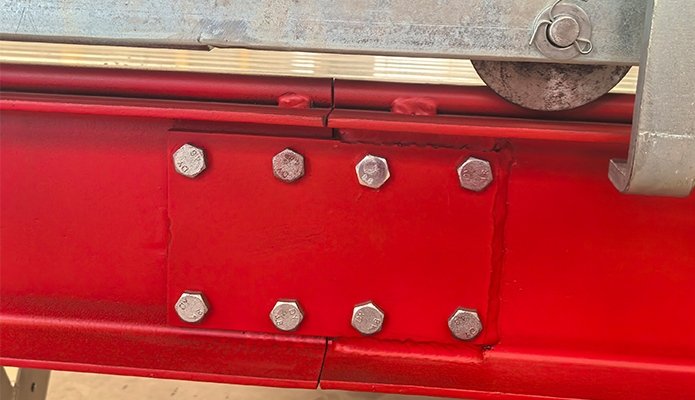

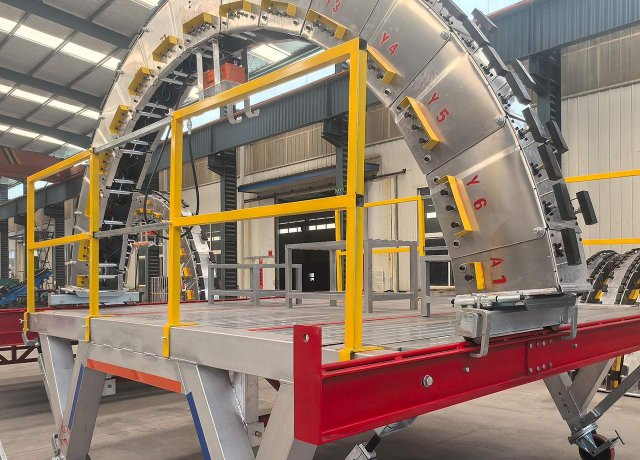

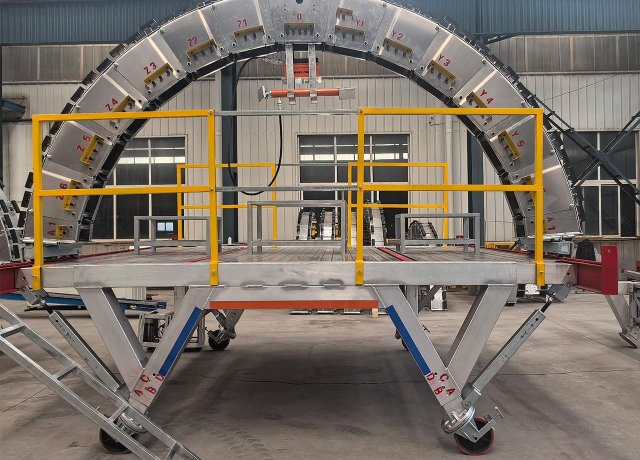

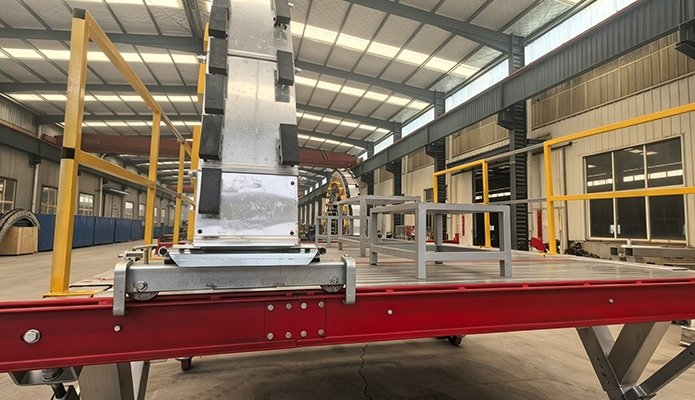

LAR designs bricking machines with a modular steel frame system. Bricking machines include a walking frame, arc support structure, lifting support blocks, pneumatic-hydraulic pump system, and sealing jacks. Bricking machines also include control valves and air distribution components for synchronized operation.
A bricking machine manufacturer ensures that each structural part supports stable load distribution during kiln lining. The bricking machine manufacturer also designs safety locking systems for stable working conditions inside rotary kilns.

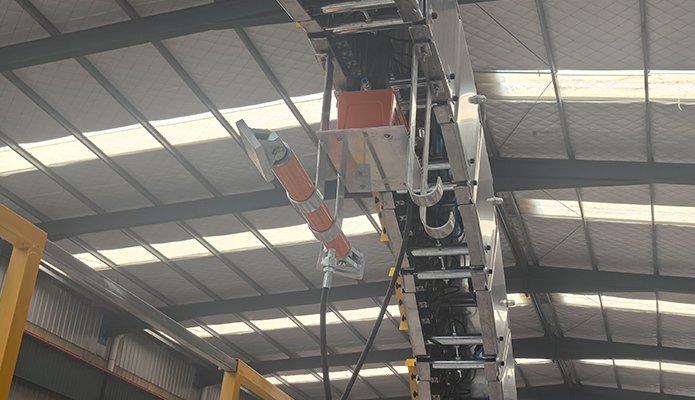

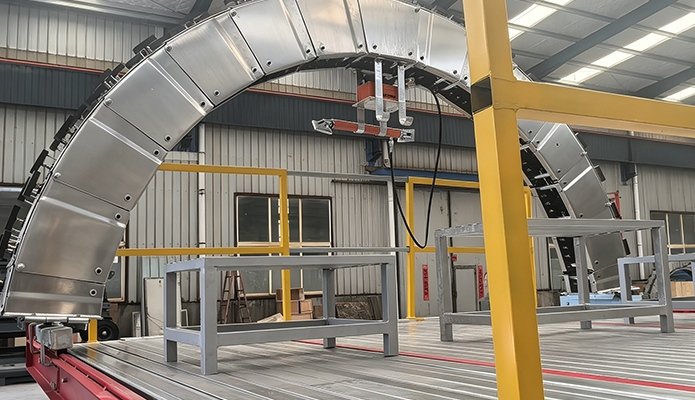

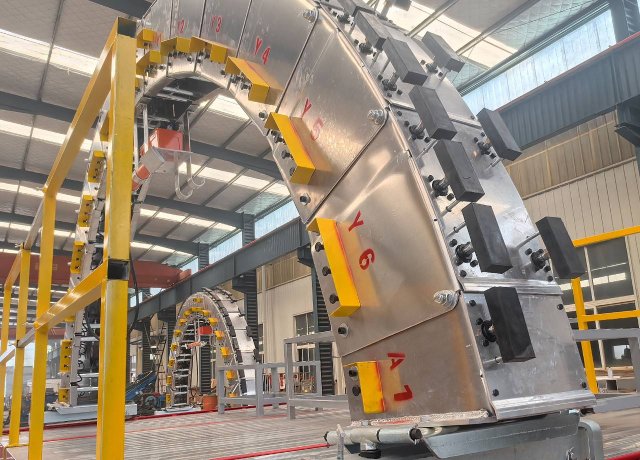

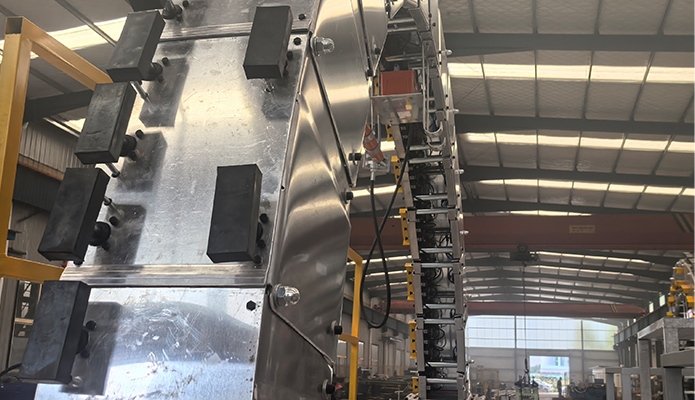

An industrial bricking machine uses a curved support frame to match kiln inner geometry. The industrial bricking machine ensures accurate brick alignment along the kiln circumference. The industrial bricking machine also supports vertical lifting and pressing movements.
Working Principle
LAR designs bricking machines based on compressed air and hydraulic pressure systems. Bricking machines use compressed air to drive cylinder movement through a triple oil-water separator system. Bricking machines convert air pressure into stable mechanical pushing force for refractory brick installation.
An industrial bricking machine controls multiple cylinders through air pressure valves. The industrial bricking machine ensures synchronized lifting and pushing of brick layers. The industrial bricking machine also maintains pressure stability even during temporary air supply interruption.
A bricking machine manufacturer integrates pressure-holding safety systems into the design. The bricking machine manufacturer ensures that internal pressure remains stable for short periods after air supply interruption.
Technical Advantages
LAR designs bricking machines to improve kiln lining efficiency. Bricking machines allow operators to complete refractory brick installation without rotating the kiln body. Bricking machines also enable simultaneous maintenance of other kiln sections.
An industrial bricking machine improves construction safety by eliminating high-risk manual rotation operations. The industrial bricking machine reduces accident probability during kiln maintenance.
A bricking machine manufacturer ensures uniform brick pressing force through balanced air cylinder pressure. The bricking machine manufacturer improves lining flatness and installation precision.
Bricking machines for sale reduce labor intensity by allowing operators to work mainly on brick handling and control switches. Bricking machines for sale significantly improve working efficiency in kiln repair projects.
Overview
LAR designs bricking machines for use in multi-stage kiln lining procedures. Bricking machines support bottom lining, side wall construction, and top locking operations. Bricking machines work together with adjustment plates, locking bricks, and hydraulic pressing tools.
An industrial bricking machine assists in sequential brick placement and alignment checking. The industrial bricking machine ensures that each brick is tightly pressed against the kiln shell surface.
A bricking machine manufacturer considers kiln expansion gaps and brick taper differences during system design. The bricking machine manufacturer ensures compatibility with different refractory brick types such as standard bricks and adjustment bricks.
Technical Parameters
Parameter | Details |
Weight | ±2500 kg |
Payload Capacity | ±5000 kg |
Platform Length | 3.3 meters |
Framework Material | High-strength aluminum alloy 6061-T6 |
Flooring Material | 40×80 galvanized pipe |
Air Pressure | 6.21–8.27 atm (90–120 psi) |
Air Flow | 0.28–1.1 m³/min |
Installation Time | Approx. 1 hour |
Bricklaying Speed | 1 meter/hour (skilled operator) |
Piston Stroke | 150 mm |
Construction Distance | 3500 mm |
Wheels | 4 polyurethane wheels with locks |
Air Filter Unit | Combined filter and lubrication |
Safety Valve | Automatic activation on pressure drop |
Arch Structure | Double-layer brick design, moves parallel to kiln axis |
Pneumatic Cylinders | Integrated, dust-proof and safe |
Pneumatic Hammer | Includes hose, head, and nozzle |
Spare Parts Kit | 1 or 2 years optional |
Shipping Container | 12m³ steel container for transport/storage |
Certification | CE Certified |
The product specifications are for reference only; actual specifications shall be subject to the final product or official technical data.
Key Features
LAR bricking machines improve kiln lining efficiency and safety.
The bricking machines reduce manual labor intensity during refractory installation.
A bricking machine manufacturer ensures stable pneumatic-hydraulic control performance.
The industrial bricking machine improves brick alignment accuracy inside rotary kilns.
Bricking machines for sale support different kiln sizes and industrial applications.
The system improves uniformity of refractory brick installation.
The design reduces downtime during kiln maintenance operations.
The structure supports stable and continuous working conditions.
![]()
![]()
![]()
Application Areas
Cement rotary kiln maintenance
Metallurgical kiln lining projects
Lime kiln refractory installation
Chemical kiln maintenance systems
Refractory engineering contractors
Industrial furnace lining operations
Energy and thermal processing plants
LAR provides engineered kiln maintenance equipment for refractory construction projects. Bricking machines improve installation efficiency and lining quality in rotary kilns. A bricking machine manufacturer ensures reliable design and stable performance. An industrial bricking machine delivers safe and accurate brick installation. Bricking machines for sale provide scalable solutions for global kiln maintenance and refractory engineering applications.
