Large Diameter Kiln Lining Machine

Refractory Bricklaying Equipment

LAR manufactures mechanical brick lining machines for traditional and semi-automated kiln maintenance operations. The mechanical brick lining machines rely on mechanical and pneumatic systems to assist brick positioning and pressing. The mechanical brick lining machines also provide reliable performance in long-duration kiln repair projects.

LAR supplies portable brick lining machines for flexible kiln maintenance and on-site installation work. The portable brick lining machines are designed for easy transport, fast assembly, and adaptable operation. The portable brick lining machines also help reduce downtime during kiln shutdown periods.

Add To Cart Inquiry

Machine Structure

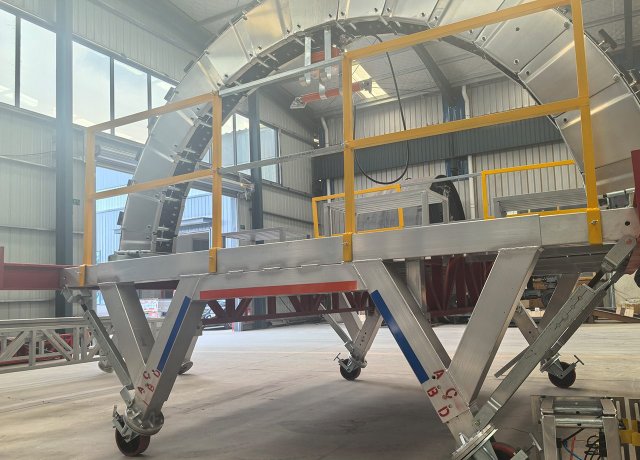

LAR builds the large diameter kiln lining machine with a reinforced steel frame and modular support system. The large diameter kiln lining machine includes arch supports, trolley rails, lifting cylinders, and safety locking components. The large diameter kiln lining machine also ensures stable load distribution inside large rotary kilns.

The mechanical brick lining machines use synchronized mechanical lifting and pressing structures. The mechanical brick lining machines ensure accurate alignment of refractory bricks along the kiln wall. The mechanical brick lining machines also reduce manual labor intensity during installation.

The portable brick lining machines adopt a compact modular structure for fast assembly and disassembly. The portable brick lining machines improve transport efficiency and on-site usability. The portable brick lining machines also support multi-kiln adaptability.

Working Principle

LAR designs the large diameter kiln lining machine based on controlled mechanical pushing and lifting systems. The large diameter kiln lining machine ensures consistent brick pressure during installation. The large diameter kiln lining machine also maintains stability under heavy kiln lining loads.

The mechanical brick lining machines operate through synchronized mechanical transmission systems. The mechanical brick lining machines ensure uniform brick positioning and tight kiln wall contact. The mechanical brick lining machines also improve lining accuracy and structural integrity.

The portable brick lining machines use simplified control systems for quick operation. The portable brick lining machines allow operators to complete lining tasks with reduced setup time.

Technical Advantages

LAR designs the large diameter kiln lining machine to improve efficiency in large-scale kiln maintenance projects. The large diameter kiln lining machine reduces construction time and improves lining precision. The large diameter kiln lining machine also enhances safety during high-altitude kiln operations.

The mechanical brick lining machines improve consistency in brick placement and pressure distribution. The mechanical brick lining machines reduce installation errors and improve refractory durability.

The portable brick lining machines provide high flexibility for different kiln environments. The portable brick lining machines allow quick relocation between job sites.

Structural Features

LAR builds the large diameter kiln lining machine with high-strength alloy steel and reinforced support frames. The large diameter kiln lining machine ensures long-term stability under heavy industrial conditions.

The mechanical brick lining machines integrate durable mechanical joints and anti-wear components. The mechanical brick lining machines extend service life under continuous operation.

The portable brick lining machines use lightweight but strong structural materials. The portable brick lining machines balance mobility and structural strength.

Key Features

LAR large diameter kiln lining machine supports oversized rotary kiln applications.
The large diameter kiln lining machine improves lining accuracy and safety.
LAR mechanical brick lining machines ensure stable mechanical brick positioning.
The mechanical brick lining machines reduce manual labor intensity.
LAR portable brick lining machines improve mobility and installation speed.
The portable brick lining machines support multi-site kiln maintenance.
The system improves overall kiln lining efficiency.
The design ensures stable long-term industrial operation.

Technical Parameters

Parameter	Details
Weight	±2200 kg
Payload Capacity	±5000 kg
Platform Length	3.3 meters
Framework Material	High-strength aluminum alloy 6061-T6
Flooring Material	40×80 galvanized pipe
Air Pressure	6.21–8.27 atm (90–120 psi)
Air Flow	0.28–1.1 m³/min
Installation Time	Approx. 1 hour
Bricklaying Speed	1 meter/hour (skilled operator)
Piston Stroke	150 mm
Construction Distance	3500 mm
Wheels	4 polyurethane wheels with locks
Air Filter Unit	Combined filter and lubrication
Safety Valve	Automatic activation on pressure drop
Arch Structure	Double-layer brick design, moves parallel to kiln axis
Pneumatic Cylinders	Integrated, dust-proof and safe
Pneumatic Hammer	Includes hose, head, and nozzle
Spare Parts Kit	1 or 2 years optional
Shipping Container	12m³ steel container for transport/storage
Certification	CE Certified

The product specifications are for reference only; actual specifications shall be subject to the final product or official technical data.

Application Areas

Cement rotary kiln maintenance
Metallurgical kiln lining projects
Lime kiln refractory installation
Chemical industry kiln systems
Heavy industrial furnace maintenance
Large-scale refractory engineering projects
Construction and maintenance contractors

LAR designs the large diameter kiln lining machine for high-efficiency operation in oversized kiln environments. The large diameter kiln lining machine reduces downtime and improves project productivity.

The mechanical brick lining machines ensure stable and accurate brick installation under heavy load conditions. The mechanical brick lining machines improve construction quality.

The portable brick lining machines allow fast deployment and relocation between projects. The portable brick lining machines improve operational flexibility in field applications.

LAR provides advanced kiln lining systems for large industrial applications. The large diameter kiln lining machine delivers stable and precise refractory installation. The mechanical brick lining machines improve efficiency and structural reliability. The portable brick lining machines ensure flexible, mobile, and efficient kiln maintenance solutions for modern industrial operations.
