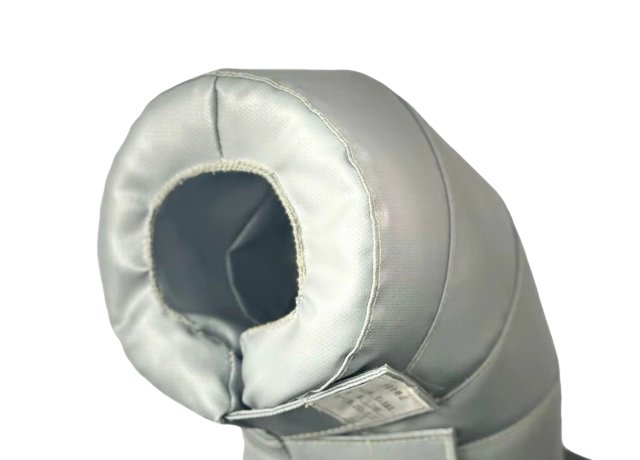

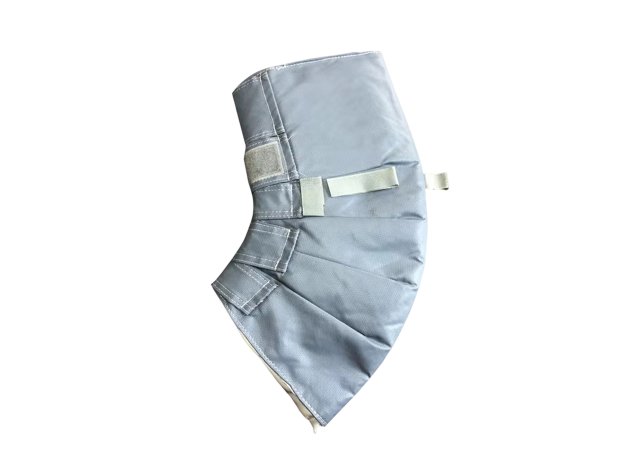

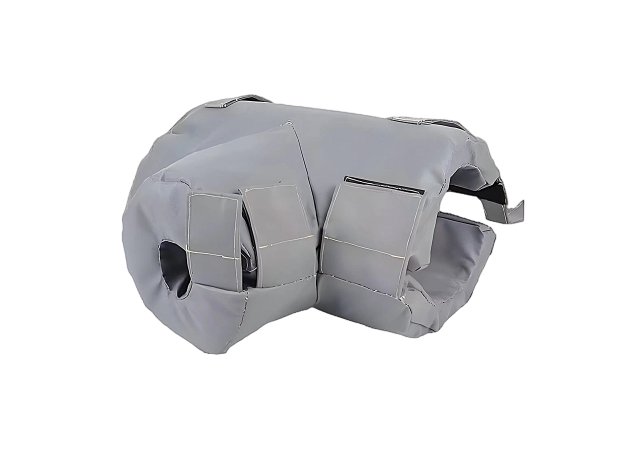

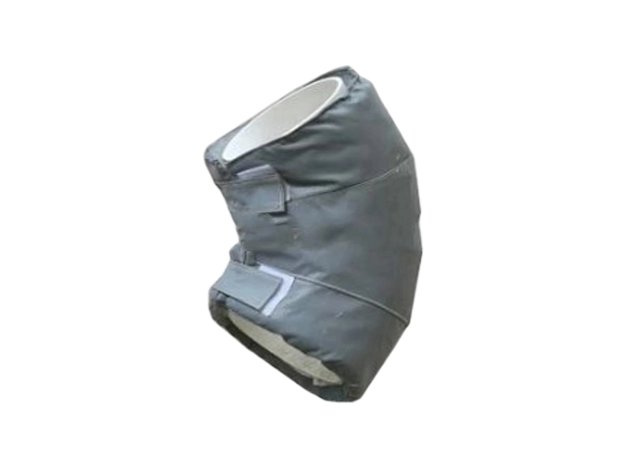

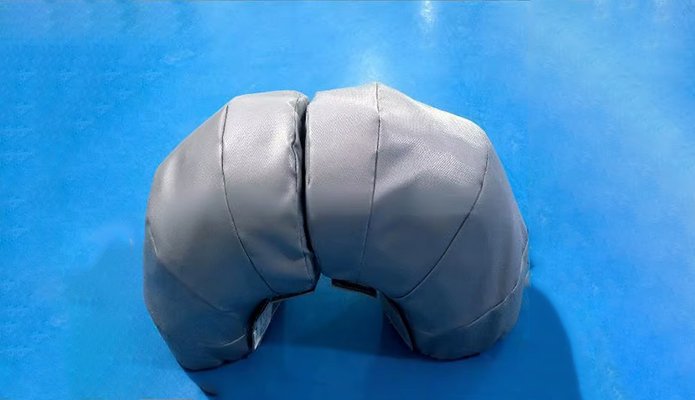

Elbow Insulation Cover

Pipe Insulation

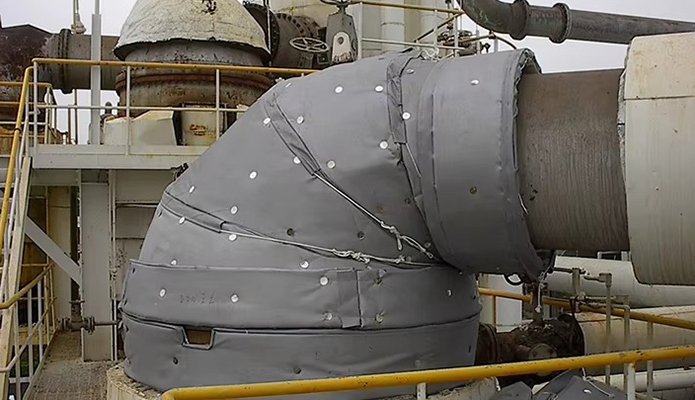

LAR produces the pipe elbow insulation cover for elbow sections in steam, oil, gas, and chemical pipelines. The pipe elbow insulation cover focuses on covering high-stress bending zones where heat loss is usually higher than straight pipe sections. The pipe elbow insulation cover also helps maintain stable thermal performance in continuous flow systems.

LAR develops the elbow heat insulation cover for demanding industrial applications that require strong thermal resistance. The elbow heat insulation cover helps stabilize temperature distribution at pipeline direction changes. The elbow heat insulation cover also supports long-term energy saving in high-temperature transport systems.

Add To Cart Inquiry

Design Features

LAR engineers design the elbow insulation cover with a curved wrap structure that matches standard 45° and 90° pipe bends. The elbow insulation cover fits tightly around the elbow surface to reduce thermal leakage. The elbow insulation cover also supports fast installation without modifying the pipeline.

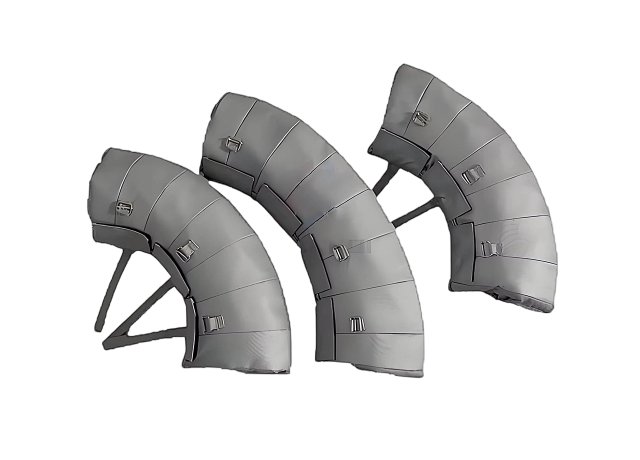

The pipe elbow insulation cover uses segmented insulation panels to adapt to different elbow radii. The pipe elbow insulation cover ensures full surface coverage even in compact installation spaces. The pipe elbow insulation cover also improves insulation continuity between straight pipe and bending sections.

The elbow heat insulation cover uses reinforced outer layers to resist oil, moisture, and mechanical wear. The elbow heat insulation cover maintains structural stability under vibration and thermal cycling conditions. The elbow heat insulation cover also helps extend service life in industrial environments.

Structural Construction

LAR builds the elbow insulation cover using a multi-layer insulation system. The outer layer resists oil, water, and abrasion. The inner insulation layer of the elbow insulation cover provides stable thermal resistance under continuous operation.

LAR manufactures the pipe elbow insulation cover with heat-resistant stitching and reinforced seams. The pipe elbow insulation cover maintains durability in high-temperature pipelines with frequent thermal expansion.

LAR constructs the elbow heat insulation cover with flexible fastening systems such as Velcro straps, buckles, or stainless steel hooks. The elbow heat insulation cover allows easy removal and reinstallation during maintenance work.

Key Features

LAR elbow insulation cover reduces heat loss at pipeline bending points.
The elbow insulation cover improves energy efficiency in industrial piping systems.
LAR pipe elbow insulation cover provides full coverage for 45° and 90° elbows.
The pipe elbow insulation cover reduces thermal leakage in high-stress flow areas.
LAR elbow heat insulation cover supports stable performance in high-temperature systems.
The elbow heat insulation cover improves safety by lowering surface temperature.
The insulation system supports repeated installation and maintenance use.
The design ensures compatibility with standard industrial pipe sizes.

Material Composition

LAR produces the elbow insulation cover using silicone-coated fiberglass fabric as the outer layer. The insulation core inside the elbow insulation cover uses ceramic fiber or mineral wool depending on temperature requirements.

LAR manufactures the pipe elbow insulation cover with corrosion-resistant materials suitable for chemical and humid environments. The pipe elbow insulation cover maintains stable performance under long-term exposure.

LAR builds the elbow heat insulation cover with reinforced fiber stitching. The elbow heat insulation cover resists deformation under vibration and thermal cycling.

Technical Parameters

Item	Unit	Value
Outer Material	—	Silicone-coated fiberglass cloth
Inner Insulation	—	Ceramic fiber / mineral wool
Temperature Resistance	°C	-50 to 1000
Thermal Conductivity	W/m·K	0.035–0.045
Thickness Range	mm	20–80
Density	kg/m³	96–128
Fastening System	—	Velcro / buckle / hook
Fire Resistance	—	Non-flammable (Class A)
Oil & Chemical Resistance	—	High resistance
Service Life	years	3–5

Application Areas

Steam pipeline elbow systems
Petrochemical processing plants
Oil and gas transmission pipelines
Chemical industrial piping networks
Power plant thermal systems
Boiler and heat exchange pipelines
Industrial fluid transport systems

Installation Advantages

LAR designs the elbow insulation cover for direct on-site installation without pipeline shutdown. The elbow insulation cover helps reduce maintenance downtime.

The pipe elbow insulation cover ensures full insulation coverage at bending sections. The pipe elbow insulation cover improves thermal efficiency in complex pipeline layouts.

The elbow heat insulation cover supports flexible removal for inspection and repair. The elbow heat insulation cover improves maintenance efficiency in industrial systems.

LAR provides engineered thermal protection solutions for pipeline bending sections. The elbow insulation cover improves energy efficiency and operational safety. The pipe elbow insulation cover ensures stable insulation at critical pipeline turns. The elbow heat insulation cover delivers durable and flexible thermal protection for industrial applications.
